2HP Floor Standing Air conditioner is a the perfect unit for a large and spacious room, with 3D-Airflow and 20meters Air throw
Back to products
Next product
Front Load (Knobless, Wash Only) Washing Machine 10.2kg, Silver, Anti Bacteria, Wave Drum Technology, A+++Energy Saving
Click to enlarge

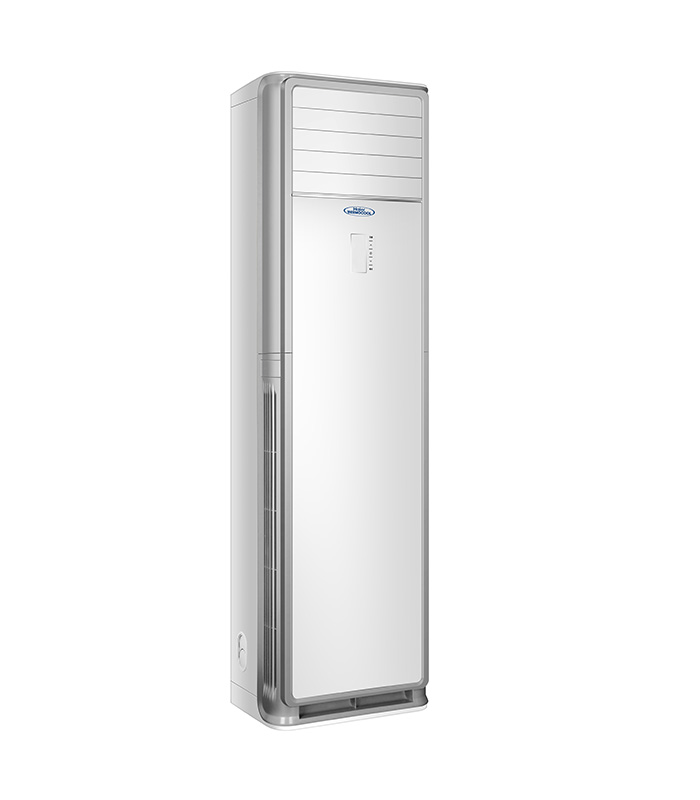

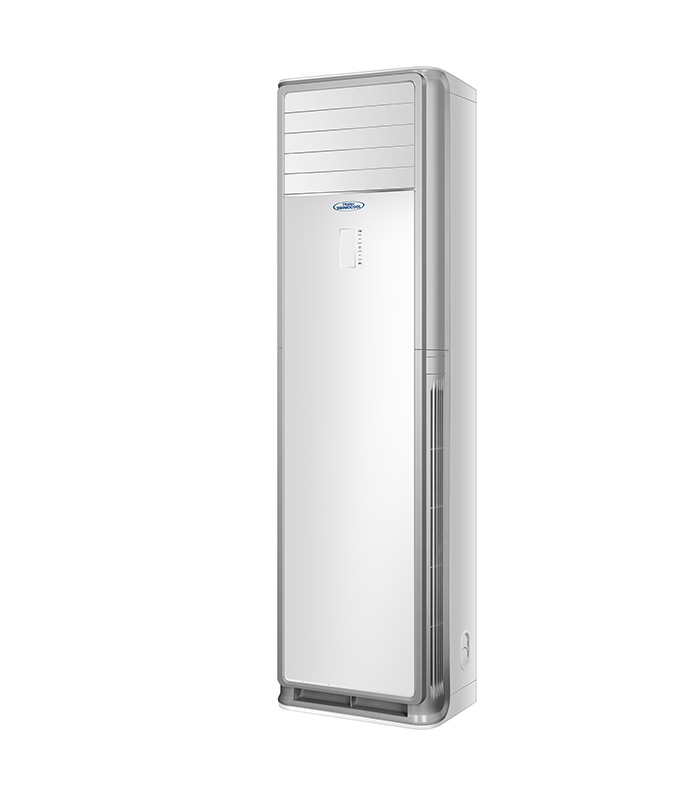

3HP Floor Standing Air conditioner is a the perfect unit for a large and spacious room, with 3D-Airflow and 20meters Air throw

1 2 3 4 5

Write a review

  • 3D Airflow
  • 25M Long Air Throw
  • Reliable Protect
  • Child Lock
Compare
Model Name: HPU-24CYW-01 Categories: Air Conditioners, Package Unit
Share
  • Features
  • Specification
  • Reviews (0)
  • Where to Buy
  • Manuals & Guides
Features

Haier Thermocool is making life comfortable with our innovative range of Package Air Conditioners, which are designed for optimal cooling and energy efficiency, enjoying 1600 wide angle reach of air supply while relaxing at home or working in the office.

3D Airflow

Enjoy all-round chill air with the two-step motors that combines vertical and horizontal auto-swing to circulate cool air to every corner of your room.

25M Long Air Throw

Enjoy the perfect temperature in your large room or office, which has a specially designed cross-flow fan and optimized air duct, allowing cool air to reach as far as 25 metres.

Reliable Protect

The system has many protect functions to achieve reliable running: High-pressure protection; Low-pressure protection; Phase protection; Over-current protection.

Child Lock

With the child lock function, the working status of the AC would not be changed either by the remote controller or the touch screen unless the setting is cancelled.

Specification
Basic data
Air Circulation (m³/h)

1200

Capacity (W) | Cooling

7100

Capacity (W) | Heating

/

COP (W/W)

/

EER (W/W)

3.05

Moisture removal (10¯³m³/h)

4.25

Power Input (W) | Cooling

2400

Power Input (W) | Heating

/

Power Supply (Ph/V/Hz)

1/220/50

Rating Current (A) | Cooling

11

Rating Current (A) | Heating

/

Refrigerant pipe (mm) | Gas side diameter

15.88

Refrigerant

R410A

Refrigerant pipe (mm) | Liquid side diameter

6.35

Indoor Unit
Net dimension (mm) (Indoor)

507/322/1765

Package dimension (mm) (Indoor)

633/468/1893

Net weight (Kg) (Indoor)

41

Gross weight (Kg) (Indoor)

51

Noise [dB(A)] (Hi/Mid/Lo/So)

46/43/38/34

Outdoor Unit
Net dimension (mm) (Outdoor)

890/353/697

Package dimension (mm) (Outdoor)

1060×473×789

Net weight (Kg) (Outdoor)

53

Gross weight (Kg) (Outdoor)

69

Noise [dB(A)] (Outdoor)

56

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “3HP Floor Standing Air conditioner is a the perfect unit for a large and spacious room, with 3D-Airflow and 20meters Air throw” Cancel reply

Your email address will not be published. Required fields are marked *

Where to Buy
Visit Store Locator
Manuals & Guides

Floor Standing Air Conditioner (3HP) HPU-24CYW-01 Owner's Manual

Download Here
